WEIGHER FOR STICK SHAPED PRODUCT
Gantan stick weigher is specially designed for stick shaped
products, ie stick biscuit etc. The unique design of the bucket and
vibrator pan etc ensures that products will keep upright during
weighing and discharge.
1. The rotary top cone instead of vibratory driving system
improves the product flow
The V shaped linear vibrator pan ensures the product will fall
upright into the bucket.
The special cylinder shaped bucket keeps the product upright
during weighing and discharge.
FEATURES
- Automatic frequency control of vibration for even and precise products distribution
- Auto zeroing during operation ensures better accuracy
- Self diagnostic alert in pop up window, easy trouble shooting
- Stagger dump for applications with large unit size
- Rejection of unqualified weight preventing film and products wasting
- Live display of individual amplitude for precise monitoring and control of each vibrator
- Live display of individual weight readings
- Central loadcell infeed controlling replacing traditional loadcell
SPECIFICATION
MODEL
|
GT-10OPA
|
GT-14OPA
|
---|---|---|
No. of Heads
|
10
|
14
|
Single Dump Capacity
|
10 - 1000 g
|
10 - 1200 g
|
Weight Deviation
|
±1 g
|
± 1.5 g
|
Max Speed
|
60 wpm
|
85 wpm
|
Hopper Capacity
|
0.8L
|
|
Level Control
|
Central Loadcell
|
|
Driving System
|
Step Motor
|
|
Control Panel
|
7"Touch Screen
|
10"Touch Screen
|
Power Supply
|
220V / 50 Hz
|
PRODUCT DETAILS
Special shaped bucket
The special designed bucket with cylinder body will keep the stick product to its upright position
V shaped vibrator pan
V shaped vibrator pan will ensure the effective distribution of the products and keep itupright when falling into bucket
Specification
Weigh Heads | 10 | 14 |
Max Speed | 60wpm | 85wpm |
Hopper Capacity | 1L | 1L |
Control Panel | 10″ touch screen | 10″ touch screen |
Driving system | step motor | step motor |
Level control | Loadcell | Loadcell |
Material | SUS 304 | SUS 304 |
Power Supply | 220V / 50HZ | 220V / 50HZ |

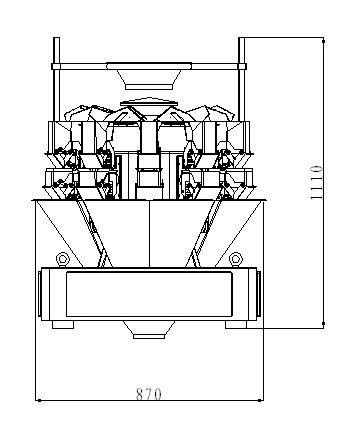

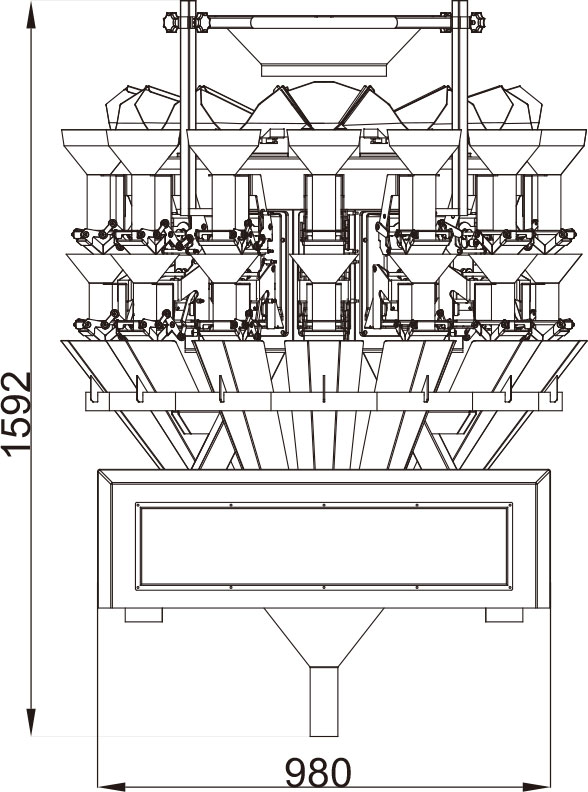

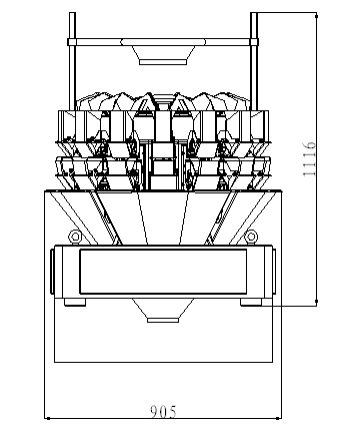

* All product layout on the website is only an estimate, a final confirmed layout will be provided upon enquiry.
Features
- Automatic frequency control of vibration for even and precise products distribution
- Auto zeroing during operation ensures better accuracy
- Self diagnostic alert in pop up window, easy trouble shooting
- Multiple dumps for bulk weighing
- Stagger dump for applications with large unit size
- Rejection of unqualified weight preventing film and products wasting
- Live display of individual amplitude for precise monitoring and control of each vibrator
- Live display of individual weight readings
- Central loadcell infeed confrolling replacing traditional loadcell
- Forced combination for frozen products preventing melting due to non selection
- High grade IP65 waterproof standard, suitable for seafood application ( refer to demo video )
